Glass and plate dishwasher | 500x600 basket | 400V | Advance electronic panel | KRUPPS CUBE LINE C640

Reliability i simple operation are the key features of the dishwasher series Cube Line. The basic line of Krupps dishwashers will find ideal use in any restaurant, bar, pub, school or other food service establishment. The Cube Line offers under-counter glass and cup dishwashers with a 350x350 basket as well as universal dishwashers with 400x400, 500x500 and 500x600 baskets.

FEATURES:

• Electronic control panel ADVANCE is a real highlight of the CUBE line, thanks to its 4 wash cycles and automatic water drain (on models with a drain pump installed)
• The display shows the water temperature of the boiler and chamber, as well as the selected wash cycle
• Thermostop system - guarantees a constant scalding temperature and protects against starting the scalding cycle with water not heated to the right temperature
• Smart Button Smart Start changing color, always shows the current dishwasher mode
• Self-diagnostic system that informs about all anomalies of the device
• There is a built-in rinse aid dispenser and a washing liquid dispenser as standard for excellent cleaning results
• Washing cycle takes place at 50-60°C, dish scalding at 80-90°C
• System SOFT START - minimizes the risk of glass damage by gradually increasing the water pressure in the washing arms (available as an option on the C537E and C537TE models, standard on the C640)
• System SOFT DOOR - free-fall door system optionally available for dishwashers C432, C537E, C537TE, C640
• Double basket system - a system that allows you to load two baskets at the same time (available as an option on the C537E and C537TE dishwashers)
• 3FS filtering system - A triple filter that traps all debris in a practical reservoir and further protects the drain from random residue entering the drain pump or sewer pipes
• Possibility to wash GN1/1 containers in C640 model (special basket 543300 is required in C537E and C537TE models)
• Gravity drain
• Check valve to prevent backflow

CONSTRUCTION:

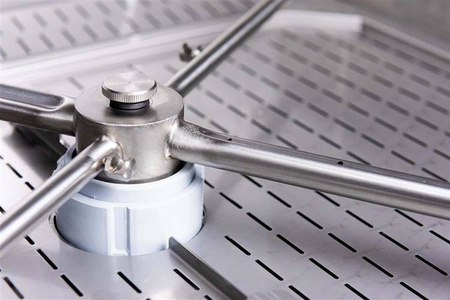

• The contoured wash and rinse arms are made of stainless steel, making them durable and reliable. Can be quickly disassembled for cleaning
• Innovative arm nozzles, are arranged progressively to achieve even better cleaning results
• The dishwasher housing is made of high quality AISI 304 stainless steel
• Double-layer insulated doors provide excellent thermal and acoustic insulation
• The door allows for gradual opening and leaving the door ajar for gentle steam release and for shutdown time
• 20/10 brackets installed in the door guarantee timeless durability
• The C432, C537E, C537TE, C640 dishwashers use new and improved 20/10 guides that can withstand very heavy loads
• Contoured, sloped chamber design streamlines the process of draining the dishwasher of water
• Feet allow the dishwasher to be leveled properly
• Double-layer side walls available on C537E, C537TE dishwashers, (optional)

Included:

• 1 tray garbage can 500x600x100 (input of 10/12 trays)
• 1 glass basket 500x600x150 mm
• 1 basket for plates 500x600x150 mm (load of 22 plates)
• 2 cutlery baskets

Technical parameters:

• Dimensions [mm]: 585x715x865
• Dimensions of basket [mm]: 500x600
• Wash cycle length [s]: 90/120/150/180
• Capacity at +55°C water supply [baskets/h]: 40
• Maximum glass height [mm]: 340
• Maximum disc height [mm]: 370
• Maximum pot height [mm]: 340
• Capable of washing containers: GN 1/1 and 600x400
• Tank heater power [kW]: 2,6
• Tank capacity [l]: 30
• Boiler heater power [kW]: 5,4 (9,0)
• Boiler capacity [l]: 7,3
• Washing pump power [kW]: 1,12
• Total power [kW]: 6,52 (10,12)
• Power supply [V]: 400
• Water consumption per cycle [l]: 2

Optional equipment:

• PST50 - free-falling doors
• 3294K - stainless steel feet
• DP65K - drain pump
• CA500K - internal pressure booster pump
• PZK - dishwasher base with basket slides
• 8201000K - surface filter 550x550x200 mm
• 800057 - wine glass washing basket 500x500x170 mm
• 640200 - tray washing basket 500x500x200 mm

Why choose a Krupps dishwasher from the Cube series?:

• At the top and bottom of the chambers are specially designed rinsing and washing arms made of stainless steel to increase cleaning efficiency.
• The dishwasher has a very efficient washing pump that allows you to thoroughly wash even heavily soiled dishes with low energy consumption.
• Dishwasher doors are made of thick steel with double walls for quieter dishwasher operation.
• All Krupps dishwashers have a scalding function.
• Each of the dishwashers is prepared for quick installation, has all necessary cables, wires and has pre-adjusted dispensers.
• Dishwashers from Krupps represent the Italian manufacturer's 50 years of experience in the construction of this type of equipment, which is associated with a very low failure rate and innovative solutions that affect the quality of cleaning and low energy consumption.
• 24 month warranty throughout Poland.
