Dishwasher for trays and pots | baking trays | baking baskets | 670x600 basket | KRUPPS ELITECH LINE EL981E

Dishwashers in the ELITECH line provide maximum efficiency thanks to the ACQUATECH system, which, through an atmospheric boiler and rinse pump, maintains constant temperature, pressure and ensures optimal water consumption. Elitech is an excellent choice for restaurants, bars, pubs, cafeterias, nursing homes, pastry shops, bakeries or butcher shops. UNIKO touch panel made of tempered glass is extremely reliable and convenient to use. The selection of the washing cycle is very simple, and the practical messages on the display increase the ergonomics of use.

FEATURES:

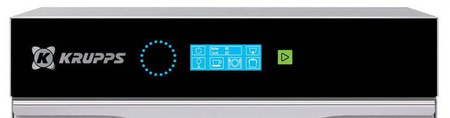

• Uniko touch panel allows the user to select the best cycle depending on the type of dishes to be washed and the level of soiling. Thanks to simple icons, choosing the most appropriate cycle is extremely easy and intuitive
• Access to 20 stored cleaning programs, including 4 quick access programs
• Customizable washing parameters such as time (max. 16 min), wash and rinse temperature, and detergent dosage for each program
• ACQUATECH system - maintains constant scalding temperature, optimal pressure and ensures water consumption
• Atmospheric boiler - prevents hot water from mixing with fresh, cold water, guaranteeing a constant scalding temperature
• A separate rinse pump ensures optimum water pressure, regardless of tap water pressure
• The expansion tank allows you to fill the boiler in small quantities, so the boiler heats up faster
• Thermostop system - guarantees a constant scalding temperature and protects against starting the scalding cycle with water not heated to the right temperature
• Smart Button Smart Start changing color, always shows the current dishwasher mode
• A self-diagnostic system that reports all anomalies of the device and informs about the type of failure. Separate for user and service
• There is a built-in rinse aid dispenser and a washing liquid dispenser as standard for excellent cleaning results
• Washing cycle takes place at 50-60°C, dish scalding at 80-90°C
• System SOFT START - minimizes the risk of glass damage by gradually increasing the water pressure in the washing arms (available as an option on EL50E, EL51E models, standard on EL55E model)
• Ecologycare function - self-cleaning cycle at the end of the working day: cleans the washing chamber of foam and dirt and empties the boiler of hot water
• Ecoclean function - is responsible for the partial replacement of water after each washing cycle, which is ideal in terms of efficiency, economy and respect for the environment
• System SOFT DOOR - free-fall door system available as standard on EL981E, EL985E EL991E and as an option on EL42E, EL50E, EL51E, EL55E dishwashers
• Double basket system - a system that allows you to load two baskets at the same time (available as an option on EL50E, EL51E dishwashers)
• 3FS filtering system - A triple filter that traps all debris in a practical reservoir and further protects the drain from random residue entering the drain pump or sewer pipes
• Wi-Fi iKloud - possibility of remote control of the dishwasher (option)
• Gravity drain
• Optional drain pump allows for automatic drain operation and partial replacement of clean water with each wash cycle
• Check valve to prevent backflow

CONSTRUCTION:

• The contoured wash and rinse arms are made of stainless steel, making them durable and reliable. Can be quickly disassembled for cleaning
• Innovative arm nozzles, are arranged progressively to achieve even better cleaning results
• The dishwasher housing is made of high quality AISI 304 stainless steel
• Double-layer insulated doors provide excellent thermal and acoustic insulation
• The door allows for gradual opening and leaving the door ajar for gentle steam release and for shutdown time
• 20/10 brackets installed in the door guarantee timeless durability
• The EL42E, EL50E, EL51E, EL60E and EL60TH dishwashers feature new and improved 20/10 guides that can withstand very heavy loads
• Contoured, sloped chamber design streamlines the process of draining the dishwasher of water
• Feet allow the dishwasher to be leveled properly
• Double-layer side walls available as standard on EL951E, EL981, EL985E, EL991E, and optional on EL50E, EL51E dishwashers
• The EL985E is equipped with two washing pumps
• Surface filters as standard on EL60E, EL60TH, EL70E, EL951E EL981E, EL985E EL991E models

Included:

• 1 stainless steel basket 600x670x100 mm
• 1 tray rack (input of 5 trays)
• 1 cutlery basket with 8 compartments
• 2 surface filters

EL981E Technical Parameters:

• Dimensions [mm]: 775x810x1900
• Dimensions of basket [mm]: 600x670
• Wash cycle length [s]: 120/150/240/540
• Capacity at +55°C water supply [baskets/h]: 30
• Maximum glass height [mm]: -
• Maximum disc height [mm]: 630
• Maximum pot height [mm]: 840
• Capable of washing containers: GN 1/1, GN 2/1, 600x400 and 600x800
• Maximum height of bread baskets [mm]: 850
• Power of tank heaters [kW]: 4,5
• Tank capacity [l]: 37
• Boiler heater power [kW]: 5,4 (9,0)
• Boiler capacity [l]: 12
• Washing pump power [kW]: 2,0
• Total power [kW]: 7,4 (11,0)
• Acquatech system power [kW]: 0,37
• Power supply [V]: 400
• Water consumption per cycle [l]: 2

Optional equipment:

• DP110K - drain pump
• WF200K - device control via Wi-fi (iCloud)
• SO3000K - reverse osmosis system
• 1160 - Stand for 13 plates 655x240x130 mm

Why choose a Krupps dishwasher from the Elitech series?

• At the top and bottom of the chambers are specially designed rinsing and washing arms to increase cleaning efficiency.
• The dishwasher has a very efficient washing pump that allows you to thoroughly wash even heavily soiled dishes with low energy consumption.
• Touchscreen control panel with extensive functions for selecting the wash cycle according to the degree of soiling of the dishes.
• They have a special expansion tank and an additional rinse pump that guarantees excellent washing results and faster drying of dishes.
• Elitech series dishwashers are the only ones on the market with network connectivity Wi-fi which allows, for example, immediate diagnosis during a possible malfunction.
• Have the ability to enable a function by which the dishwasher automatically turns off the heaters when not in use - such a solution can bring great savings in energy consumption.
• Krupps dishwashers represent the Italian manufacturer's 50 years of experience in the construction of this type of equipment, which is associated with very low failure rates and innovative solutions that affect the quality of cleaning and low energy consumption.
• 12 month nationwide warranty (24 month nationwide warranty when ordering dishwasher with iKloud wifi panel)

Download:

User Manual
