Dishwasher for glass, plates | trays | basket 500x600 | KRUPPS KORAL LINE K840E

KORAL Line is distinguished by a wide range of models that work in any situation. UNIKO touch panel made of tempered glass is extremely reliable and convenient to use. The selection of the washing cycle is very simple, and the practical messages on the display increase the ergonomics of use.

Among Koral dishwashers you will find universal dishwashers with a 400x400 basket, 500x500 basket, hooded dishwashers, as well as for washing trays and pots

FEATURES:

• Uniko touch panel allows the user to select the best cycle depending on the type of dishes to be washed and the level of soiling. Thanks to simple icons, choosing the most appropriate cycle is extremely easy and intuitive
• Access to 20 pre-saved cleaning programs, including 4 quick access ones
• Thermostop system - guarantees a constant scalding temperature and protects against starting the scalding cycle with water not heated to the right temperature
• Smart Button Smart Start changing color, always shows the current dishwasher mode
• A self-diagnostic system that reports all anomalies of the device and informs about the type of failure. Separate for user and service
• There is a built-in rinse aid dispenser and a washing liquid dispenser as standard for excellent cleaning results
• Washing cycle takes place at 50-60°C, dish scalding at 80-90°C
• System SOFT START - minimizes the risk of glass damage by gradually increasing the water pressure in the washing arms (optionally available on K540E, K560E models, standard on K840E model)
• Ecologycare function - self-cleaning cycle at the end of the working day: cleans the washing chamber of foam and dirt and empties the boiler of hot water
• Ecoclean function - is responsible for the partial replacement of water after each washing cycle, which is ideal in terms of efficiency, economy and respect for the environment
• System SOFT DOOR - free-fall door system optionally available on K540E, K560E, K840E dishwashers
• Double basket system - system that allows you to load two baskets at the same time (available as an option on K540E, K560E dishwashers)
• 3FS filtering system - A triple filter that traps all debris in a practical reservoir and further protects the drain from random residue entering the drain pump or sewer pipes
• Wi-Fi iKloud - possibility of remote control of the dishwasher (option)
• Possibility to wash GN1/1 containers on K840E model (special basket 543300 is required on K540E, K560E models)
• Gravity drain
• Optional drain pump allows for automatic drain operation and partial replacement of clean water with each wash cycle
• Check valve to prevent backflow

CONSTRUCTION:

• The contoured wash and rinse arms are made of stainless steel, making them durable and reliable. Can be quickly disassembled for cleaning
• Innovative arm nozzles, are arranged progressively to achieve even better cleaning results
• The dishwasher housing is made of high quality AISI 304 stainless steel
• Double-layer insulated doors provide excellent thermal and acoustic insulation
• The door allows for gradual opening and leaving the door ajar for gentle steam release and for shutdown time
• 20/10 brackets installed in the door guarantee timeless durability
• The K209E, K540E, K560E dishwashers use new and improved 20/10 guides that can withstand very heavy loads
• Contoured, sloped chamber design streamlines the process of draining the dishwasher of water
• Feet allow the dishwasher to be leveled properly
• Double-layer side walls available on K540E, K560E dishwashers (optional)

Included:

• 1 tray garbage can 500x600x100 (input of 10/12 trays)

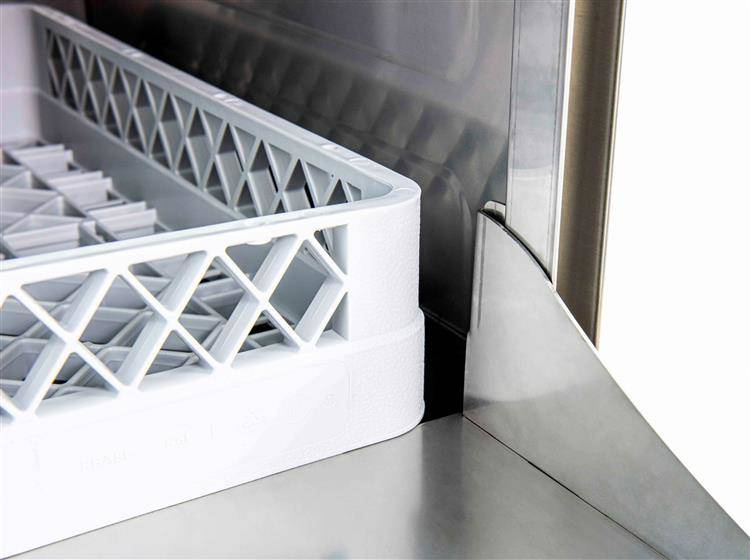

• 1 glass basket 500x600x100
• 1 plate basket 500x600x100 (load of 22 plates)
• 1 cutlery basket

Technical parameters:

• Dimensions [mm]: 585x715x865
• Dimensions of basket [mm]: 500x600
• Wash cycle length [s]: 90/110/120/300
• Capacity at +55°C water supply [baskets/h]: 40
• Maximum glass height [mm]: 340
• Maximum disc height [mm]: 370
• Capable of washing containers: GN 1/1 and 600x400
• Tank heater power [kW]: 2,6
• Tank capacity [l]: 30
• Boiler heater power [kW]: 5,4 (9,0)
• Boiler capacity [l]: 7,3
• Washing pump power [kW]: 1,12
• Total power [kW]: 6,52 (10,12)
• Power supply [V]: 400
• Water consumption per cycle [l]: 2

Optional equipment:

• PST50 - free-falling doors
• 3294K - stainless steel feet
• DP65K - drain pump
• CA500K - internal pressure booster pump
• PZK - dishwasher base with basket slides
• WF200K - device control via Wi-fi (iCloud)
• 8201000K - surface filter 550x550x200 mm
• 800057 - wine glass washing basket 500x500x170 mm
• 640200 - tray washing basket 500x500x200 mm

Why choose a Krupps dishwasher from the Koral series?:

• At the top and bottom of the chambers are specially designed rinsing and washing arms made of stainless steel to increase cleaning efficiency.
• The dishwashers have a highly efficient washing pump that allows you to thoroughly wash even heavily soiled dishes with low energy consumption.
• Dishwasher doors are made of thick steel with double walls for quieter dishwasher operation.
• The display informs us about the course of the washing cycle, the temperature of the water in the chamber and the boiler, the readiness of the dishwasher to work.
• Electronic control with the possibility of selecting up to 4 washing cycles depending on the degree of soiling of the dishes.
• Have the ability to enable a function by which the dishwasher automatically turns off the heaters when not in use - such a solution can bring great savings in energy consumption.
• Dishwashers from Krupps represent the Italian manufacturer's 50 years of experience in the construction of this type of equipment, which is associated with a very low failure rate and innovative solutions that affect the quality of cleaning and low energy consumption.
• 12-month warranty throughout Poland.

Download:

User Manual
